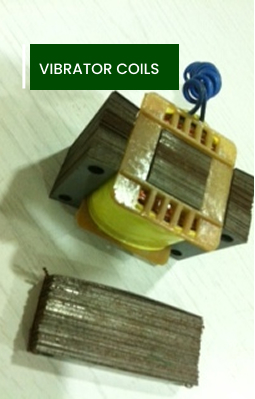

Manufacturing a premium range of Coils like Solenoids Valve Coils (Pnuematic), Solenoid Valve Coils (Hydraulics), DC Contactors & Magnet Coils, AC/DC Solenoids (Linear & Rotary Type) & Vibrator Coils, AC & DC Brake & Clutch Coils, etc.

About Us


Nitin Engineers is a prominent name for various types of coils. We have been into the manufacturing business of a comprehensive array of Pneumatic and Hydraulic type Coils in multiple specifications. With almost 50 years of experience in the industry, we are known as the leading manufacturer of Solenoids Valve Coils (Pnuematic), Solenoid Valve Coils (Hydraulics), DC Contactors & Magnet Coils, AC/DC Solenoids (Linear & Rotary Type) & Vibrator Coils, AC & DC Brake & Clutch Coils, etc.

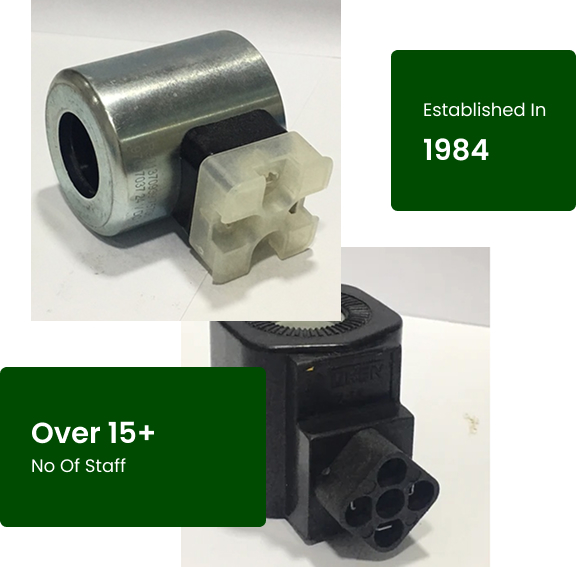

Our company was established in the year 1984, and since then we are efficiently meeting all the requirements of our esteemed customers. We manufacture these products according to the clients' requirements, specifications and drawings. All our products are manufactured as per the temperature requirements and fulfill either of the A, E, B, F or H Class of Insulations needs and have voltage range between 1V and 1.5 Kv. We are doing import substitution of Moulded Coils for Solenoid Valves & AC & DC Solenoids Lifting & Holding Types & Rotary Solenoids. We export our range to countries such as Switzerland and USA.

Our Major Clients

Owing to our consistent quality services we have been able to garner a huge client base across the world. Some of our major clients are as given below:

  • Diversey Europe B.V. Ultrecht, Switzerland
  • I.Q. Valves, USA.
  • Electromag Devices Pvt Ltd, Mumbai
  • Compare Systems Pvt Ltd, Mumbai.
Product Range

We are manufacturing, exporting and supplying a wide range of Coils for application in various areas. We use high grade super enameled copper wire, polyamide resin, varnish, insulating paper, etc. in the production process. Our standard range of products is as tabulated below:

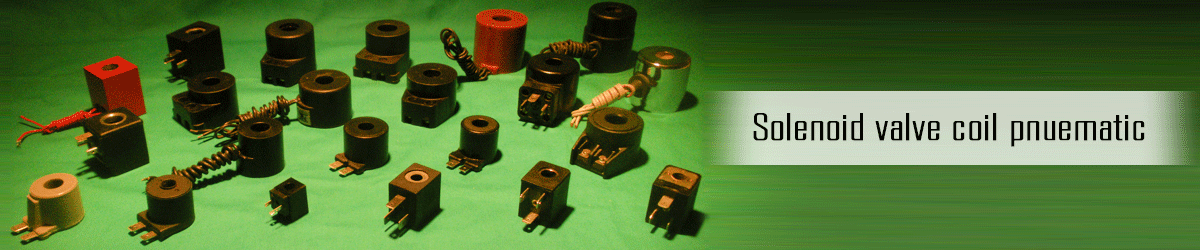

SR NO

SOLENOID VALVE COIL


ID

OD

HT


PNEUMATIC TYPE


IN MM

IN MM

IN MM

1

ROTEX TYPE COIL SIZE - I


14

42

42

2

MERCURY TYPE COIL


13

32 X 32

43

3

FESTO MINI TYPE COIL


8

22 X 30

29


G -25 type coil & Similer make coil


9 & 10

22 x 30

29

4

G.G. 3 PIN TYPE COIL


13

32 X 43

42

5

COMP AIR 2 PIN TYPE COIL


15

40

31.5

6

AVCON SMALL 2 PIN TYPE COIL


16

40

33.5

7

AVCON SMALL 2 PIN OB TYPE COIL


15.5

40

33

8

AVCON BIG 2PIN TYPE COIL


18

39

41

9

AVCON BIG 2 PIN OB TYPE COIL


18

45

45

10

G 50 3 PIN SCHRADER TYPE COIL


13

31.5X33.5

37.5

11

3 PIN ROTEX TYPE COIL


15.5

43

42

12

ADVANCE TYPE COIL


T 14B17

42.5

42

13

ASCO WIRE LEAD TYPE COIL SMALL


13.2

35

33

14

ASCO WIRE LEAD TYPE COILBIG


18

41

40

15

ASCO PIC NUT TYPE COIL


15

42

34

16

MADRAS ASCO 2 PIN TYPE COIL BIG


18

41

40

17

MADRAS ASCO 2 PIN TYPE COIL SMALL


15

42

32

18

DENFOSS TYPE COIL WIRE LEAD TYPE


18

47

45.5

19

FDL TYPE COIL WIRE LEAD TYPE


14.5

T42 B45

53

20

KARMSHEEL WIRE LEAD TYPE COIL


25

64

68

21

SPORLAN TYPE COIL


T 5.5

50

39


For Refrigeration


B 16.5




SR NO

SOLENOID VALVE COIL (HYDRAULIC TYPE)


ID
IN MM

OD
IN MM

HT
IN MM

01

DENNISON TYPE COIL


20.5

45

58.5

02

LISK IRELAND TYPE COIL


25

T 54 X 70

46





B 64 X 70


03

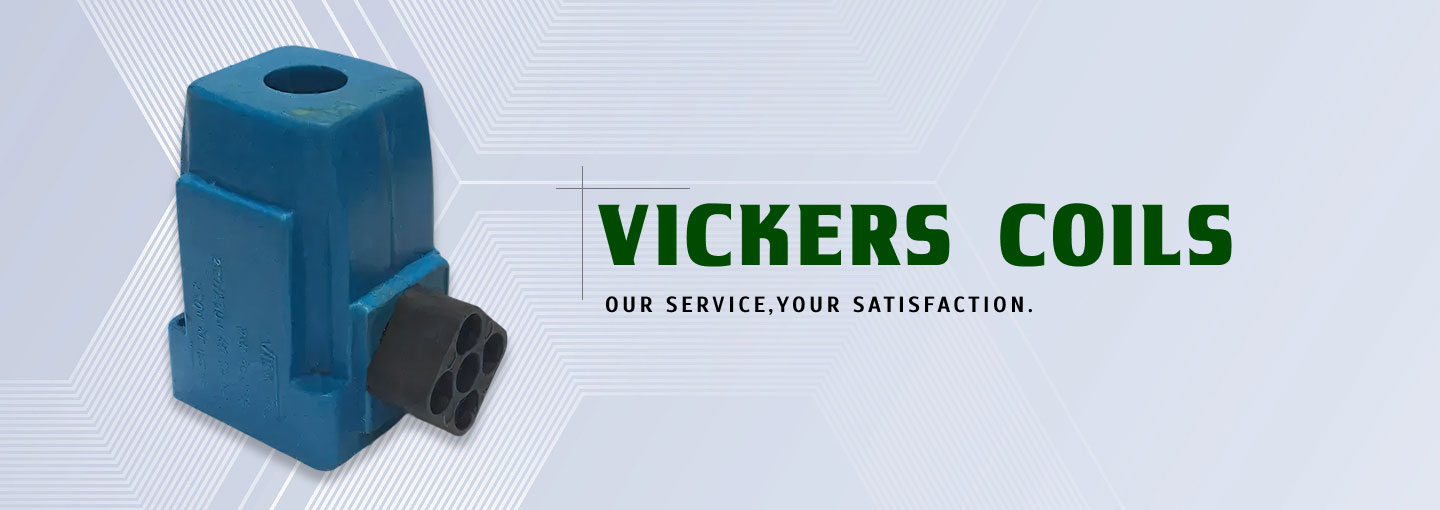

3 PIN TYPE VICKERS COIL SMALL


21

46 X 46

38

04

3 PIN TYPE VICKERS COIL MED


24

47 X 47

44.5







05

3 PIN TYPE VICKERS COIL BIG


T 16 B20.5

T 38 X 38

72.5





B 46 X 46


06

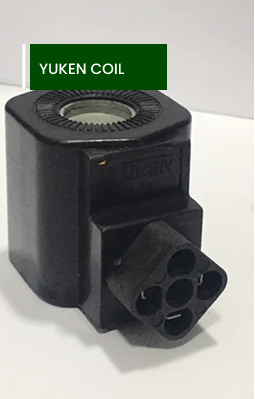

YUKEN TYPE COIL BIG


26.5

54 X 67

47.5

07

YUKEN TYPE COIL SMALL


20

39 X 47

51

08

2 PIN WIRE LEAD TYPE YUKEN COIL


16.5 X 35

36 X 62

30

09

PARKER TYPE COIL


19.2

T 32 X 46

43





B 41 X 46


10

YUKEN TYPE COIL ID 19


19

39 X 47

51

11

2 PIN VICKERS TOKIMEC COIL


21

46 X 46

54

12

3 PIN VICKERS TYPE COIL BIG


20

46 X 46

51

Our product specialty is Molded Coils for Solenoid Valves.

Clients

Our commitment, passion, dedication and expertise in the domain have helped us to earn the trust of many clients. These clients are:

  • Elecktromag Device Pvt Ltd
  • Bharat Bijlee Ltd
  • Jonson Diversey Ltd
  • Compair Systems
  • Vibromex Engineers
  • Hind Rectifiers
  • Intellvision Software Ltd
  • Pam Glatt Pharma Technologies Pvt Ltd
  • Form Fill Automation Pvt Ltd
  • Bosch Ltd
  • Metler-Toledo Ltd
  • Parle Global Technologies
  • Actis System Technologies Ltd.

NITIN ENGINEERS
216-B, Narayan Udyog Bhavan, Industrial Estate, Lalbaug, Mumbai - 400012, Maharashtra, India
Phone :+917210130145
Fax :91-22-24713300
Mr. Nitin M. Sheth (Proprietor )
Mobile :+917210130145
