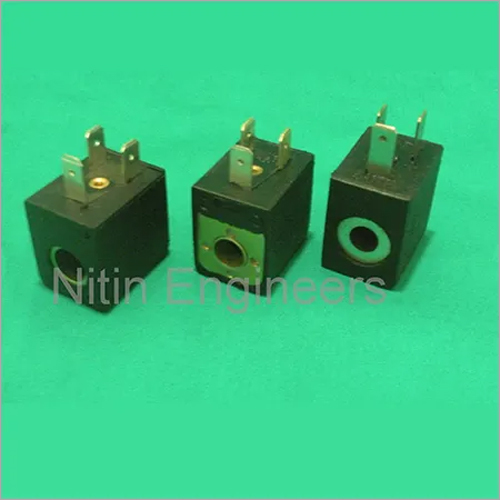

Festo Coil

Festo Coil Specification

Power Consumption
5.5 W

Operating Voltage
24V DC

End Connection
Plug-type

Working Presssure
Max. 10 bar

Material
Epoxy Resin, Copper

Valve Structure
Solenoid Coil

Way Type
2/2 Way

Processing Type
Injection Molding

Pressure
Max. 10 bar

Dimension (L*W*H)
37 mm x 30 mm x 40 mm

Port Size
M8 Thread

Connection Type
DIN Plug Connector

Application
Pneumatic Automation, Valves

Media
Air, Neutral Gases

Temperature of Media
-10C to +50C

Working Temperature
-10C to +60C

Weight
58 g

Color
Black

Festo Coil Trade Information

Minimum Order Quantity
5 Pieces

Supply Ability
100 Pieces Per Month

Delivery Time
Days

About Festo Coil

We are engrossed in supplying the top of the line Festo Coil that is popularly known among our customers owing to its high build quality and rugged construction. This coil is typically used for applications that require a robust and resilient coil. It does not degrade in quality or become inferior due to heavy loads, current overflow, rust, and other degrading factors. Festo Coil is available in varied technical configurations and types. Our customers can get the coil at a cost-effective price.

We are manufacturer and exporter of coils and solenoids. This coil id Festo coil or G-25 type coil. It is our own make and available in different voltages.

Technical Specification

ID In mm	OD In mm	HT In mm
8 9,10	22 x 30 22 x 30	29 29

Engineered for Reliability

Designed for demanding automation environments, the Festo Solenoid Coil delivers stable performance with a high insulation class (F) and IP65-rated protection, safeguarding against dust and water. Its efficient power consumption and durable structure ensure consistent operation over prolonged use.

Easy Installation and Compatibility

Thanks to the plug-type end connection (DIN connector) and convenient clip-on mounting, integrating this coil into your system is straightforward. It fits pneumatic valves with M8 thread port size and is suitable for use in various automation setups involving air and neutral gases.

Long Service Life and Safety Assurance

Manufactured with advanced injection molding processes using epoxy resin and copper, the coil offers a service life of over one million cycles. Its reliable solenoid structure and optimal insulation make it suitable even for high-frequency and high-pressure applications, ensuring lasting safety and efficiency.

FAQs of Festo Coil:

Q: How is the Festo Replacement Coil installed in a pneumatic automation system?

A: The coil utilizes a user-friendly clip-on mounting system and a DIN plug connector, allowing for quick and secure installation onto compatible pneumatic valves with an M8 thread. No special tools are required.

Q: What are the main benefits of using this solenoid coil in pneumatic valve applications?

A: Key benefits include rapid cycle times (10 ms), high durability (service life 1 million cycles), robust insulation (Class F), and enhanced protection (IP65), ensuring optimum performance in demanding industrial environments.

Q: When should this replacement solenoid coil be used?

A: This coil is ideal as a replacement for worn or malfunctioning solenoid coils in 2/2 way pneumatic valves, especially when reliable and responsive control of air or neutral gases is required in automation systems.

Q: Where can the Festo Solenoid Replacement Coil be applied?

A: The coil is designed for a broad spectrum of pneumatic automation setups, including air and neutral gas valve control in manufacturing, conveying, and processing industries. It is suitable for indoor applications within the specified temperature range.

Q: What types of valves and media are compatible with this coil?

A: The coil is engineered for 2/2 way pneumatic solenoid valves connected via an M8 port. It supports media such as air and neutral gases, with temperature compatibility from -10C to +50C.

Q: What is the maximum working pressure and temperature range for this coil?

A: The coil can withstand working pressures up to 10 bar and operates reliably within a media temperature range of -10C to +50C, with a working temperature tolerance up to +60C.
